How to Install
Door Insert Leathers		  Back
To cover the door inserts with leather:
  Kit includes 4 pre-cut leather parts for front and rear doors,
   spray glue, paddle bit, screws & washers.


The PT door panel is an assemblage of parts heat melted together,
                    (this is so it's faster to assemble at the factory).
                   To install the leather insert it is necessary to 'free' the armrest and insert part.

 In a nutshell you will:
  A. Remove the door panel from the car.
   B. Free the armrest and insert part.
    C. Wrap the insert with leather, and re-install the insert and armrest back on the door panel.


Place the door panel face down on a towel
or blanket so you don't scratch it.

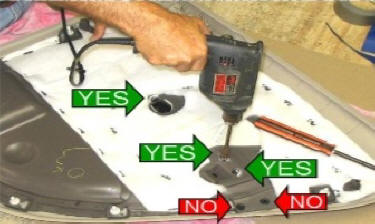

You will "knock the heads off" of the
3 melted studs holding the armrest through
the door insert.

DO NOT drill the 2 mounts past the insert.

Use a 5/8 inch paddle bit in a drill or screw-gun.
( Bit is included in the MrMikes Leather Kit )

DO  NOT  PRESS  HARD

Drill down only an 1/8th inch,
just enough to "knock the head off".

Do not drill through the door panel itself.



Continue on with the other 2 points.

It is helpful to pull away the white sound pad,
(it gets caught in the spinning drill bit)

Cut an "X" in the sound pad.



Slide a BIG flat blade screwdriver
between the door panel and the insert piece.

Twist the screwdriver at the melted points
to break the heat welds and 'free' the insert.

These heat welds can be tough,
if they do not break loose with a twist
tap the screwdriver with a hammer.


Lift up on the armrest and slide the insert out.

Now the installation of the leather:

Spray glue the back of the leather part.
( Spray glue included in MrMikes Leather Kit )

Spray glue the face of the insert piece.

Do not remove the original cloth,
it is smooth-
firmly attached-
and adds a nice touch of padding.

Let the glue dry a bit.
You know how contact cement works right?

-

Stick the leather to the insert piece.
Start in the center, pressing the leather
down into the depression.
Press in the depressions for the armrest too.



Once the face is on;
 Pull the leather over the sides.
The insert piece is 3 dimensional and
does have "sides".

Stretch the leather around these "sides" to avoid wrinkles,
fortunately there are no sharp corners.


Spray glue the back of the insert piece
and the leather part.

Glue just around the edge,
in about one inch.



Trim the leather 1/2 inch from the edge.
This will give you a nice wrinkle free fit.

You want to keep the leather off of the
flat / back surface of the insert piece,
any leather back there will keep
the insert piece from fitting flush to the door panel.



Cut out the holes for the armrest bolts.



Put the insert and the armrest back on the door.

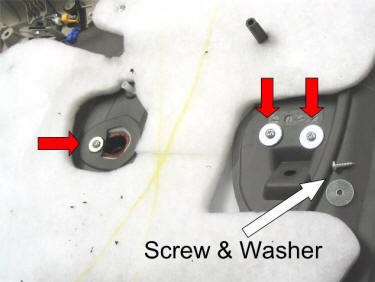

Attach the armrest with #10 X 3/4 inch
sheet metal screws and washers
(included with the MrMikes kit)

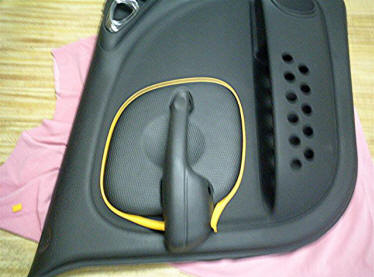

If you are installing a colored welt around the insert
do this before you tighten the screws.

Hide the end-point behind the door armrest.
(they do not need to touch)
Re-Install the door panel.
Many colors available, to match or contrast with the seats.
